THE ASSEMBLAGE

The idea of the video came from the bike “dreambuilt” videos that are are very popular. The video is just a mechanic building the bike step by step with the best parts and components out there. So we wanted to bring that into trials but giving it a bit more dynamism so we mixed some parts of the bike build with the riding. And we also skipped some part of the bike build process, and this is the result! Hope you like it!

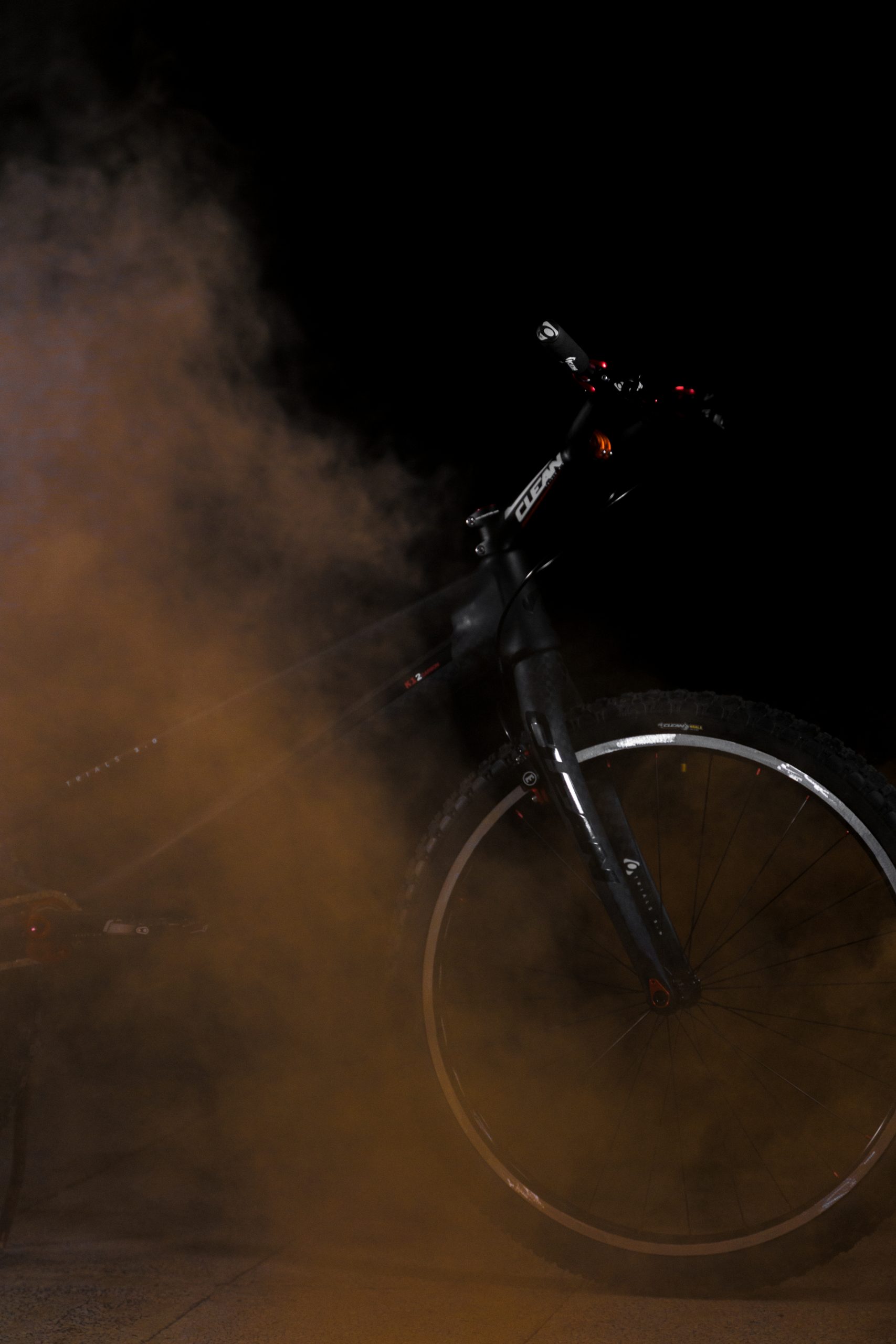

The Clean K1.2 26″ bike is the new version of the revolutionary Clean K1 26″ bike, now featuring traditional upwards-facing 4-bolt rim brake mounts to improve braking performance! Moreover, it comes with Clean X3 wheels, which include 12mm through-axles and dropouts inserts for the frame and fork, which allow the use of traditional axle wheels. All this with a new 12K carbon finish! Here are all the specifications of the bike:

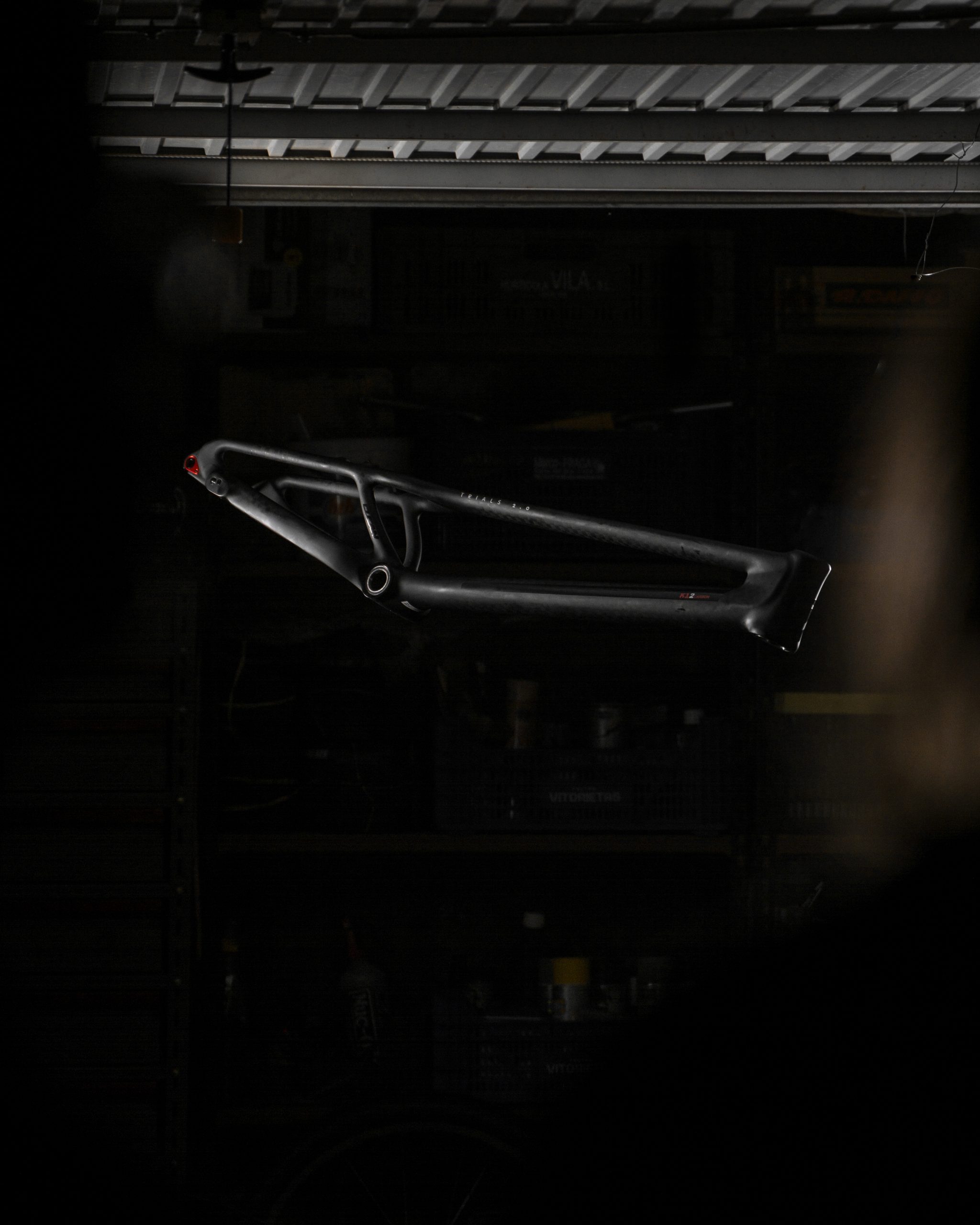

Frame: Clean K1.2 26”, made of high-modulus carbon fibre, tapered 1 1/8” – 1.5”, with 4-bolt rim brake mounts and 12K carbon finish

Fork: Clean K1.2 26”, made of high-modulus carbon fibre, tapered 1 1/8” – 1.5”, with 4-bolt rim brake mounts and 12K carbon finish

WHEELS

– Front hub: Clean X3, 12mm through-axle, 28 spoke holes, without rotor mounts, 104mm spacing, anodized black

– Rear hub: Clean X3, 12mm through-axle, 32 spoke holes, without rotor mounts, 120mm spacing, anodized black

– Chain tensioner: Clean X2 integrated, with two 10T aluminium jockey wheels

– Front rim: Clean X2 High Profile 26”, single wall, 31mm wide, 28 spoke holes, anodized black

– Rear rim: Clean X2 High Profile 26”, single wall, 49mm wide, 32 spoke holes, anodized black

– Front inner tube: Maxxis Extra Light

– Rear inner tube: Maxxis Extra Light

– Front tyre: Clean Koala, 26″ x 2.0″

– Rear tyre: Clean Koala, 26″ x 2.5″

BRAKES

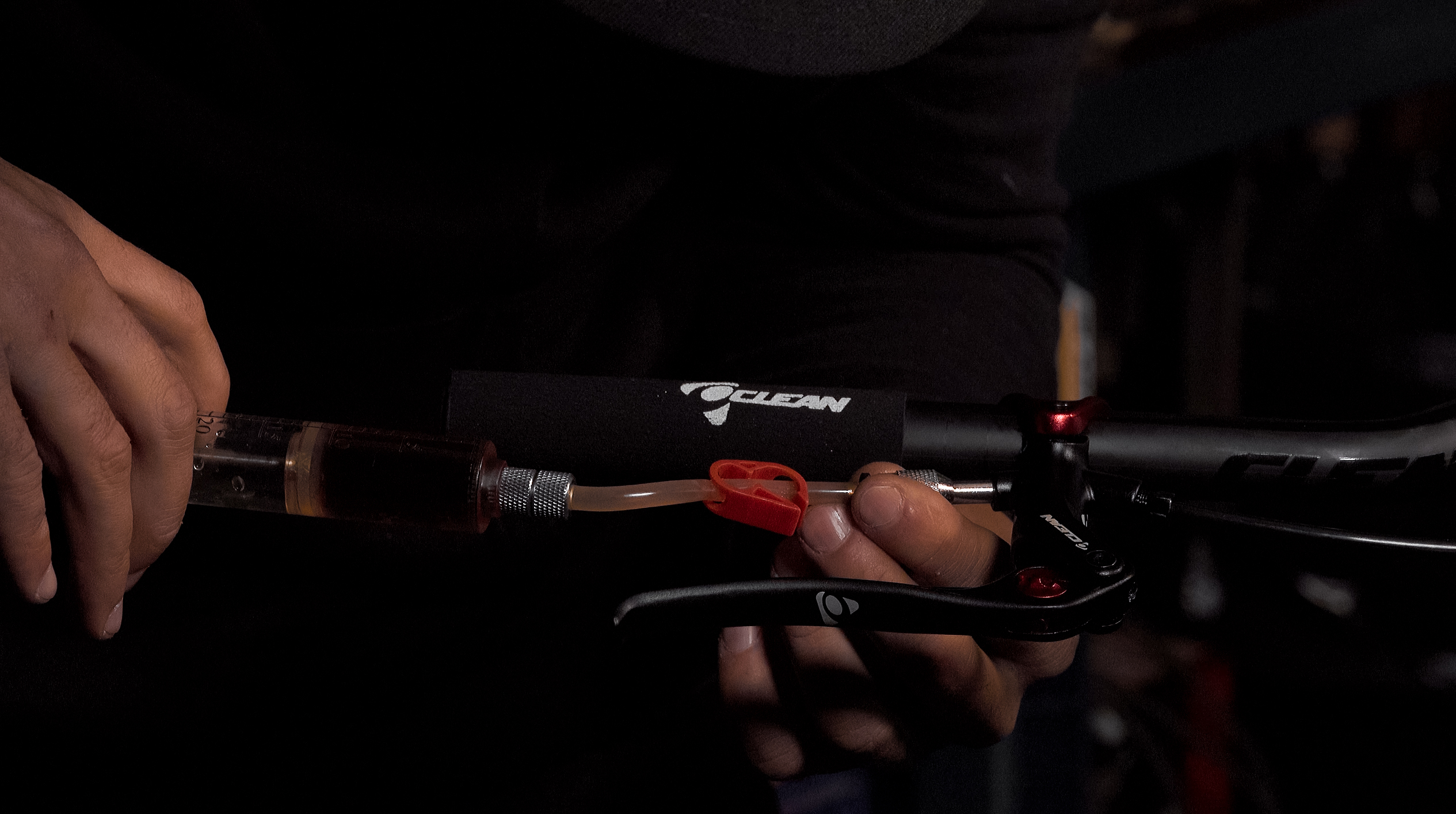

– Front brake: Clean Rim Brake Lever, HS33 calipers

– Rear brake: Clean Rim Brake Lever, HS33 calipers

TRANSMISSION

– Crankset: Clean X2 3-piece set, with Press Fit BB30 30mm diameter BB axle, CNC machine, new adjustment system, 175mm long cranks, for Cassette Shimano HG-type freewheel

– Freewheel: Clean X2 135.9 18T, with 135 engagement points, 9 pawls and 18 teeth, red

– Chain: KMC X9, silver

– Rear sprocket: Clean 15T Shimano HG splined, made of 7075-T6 aluminium alloy, anodized black

– Pedals: Clean single cage, made from 7075-T6 aluminium alloy, anodized black

STEERING

– Stem: Clean 145mm x 25°, 31.8mm Oversized handlebar diameter

– Handlebar: Clean X2 107mm carbon fibre, 730mm long, 31.8mm Oversized handlebar diameter, 12K carbon finish

GEOMETRY:

– Wheelbase: 1090mm

– Chainstay length: 380mm

– Bottom bracket rise: +67mm

– Head angle: 72º

WHEIGTH

– 8.05Kg
